The Complete Guide To Push Pull Toggle Clamp

You know the frustrating part of machining or assembly work: the part moves a few thousandths, and suddenly your cut, weld, or measurement is wrong.

That is why push/pull toggle clamps show up everywhere from CNC routers to inspection and tensile testing fixtures.

A push/pull toggle clamp uses an over-center linkage to lock a sliding plunger in a repeatable position, either pushing or pulling, so your workholding stays consistent from cycle to cycle.

In this guide, you will see the main clamp styles (including stainless steel and low-profile options), how to think about mounting bracket and through-panel mounting choices, and how to match plunger travel, spindle threads, and holding capacity to your job.

Read on to pick a clamp you can install once and trust every day.

Key Takeaways

• Carr Lane’s CL-650-SPC is a heavy industrial clamp rated at 16,000 lbs holding capacity, and it locks in the extended or retracted position with 3″ of plunger travel.
• Light-duty models like PP-301A and PP-301B are rated at 100 lbs holding capacity with 0.63″ travel, and they are commonly used for small jigs, quick stops, and simple fixtures.
• Travel varies widely across common push/pull toggle clamps, from 0.63″ on PP-301A to 2.63″ on PP-36224, so you should match clamp stroke to workpiece thickness plus clearance.
• For corrosion resistance, stainless steel options like PP-36202SS (200 lbs) and PP-36204SS (300 lbs) help in wet, washdown, or chemical-exposed stations.
• Quantity pricing can materially change your per-station cost, for example PP-36330 drops from $26.76 to $20.87 at 200 units.

Pricing and stock counts in this page reflect published listings from The Toggle Clamp Store in February 2026 and can change with demand.

Understanding Push/Pull Toggle Clamps

Push/pull toggle clamps lock a plunger in place for repeatable, high-force holds.

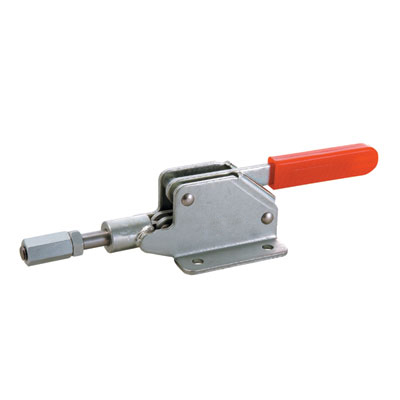

Push/pull toggle clamps are a straight-line action clamp: a sliding plunger moves in and out, then the toggle linkage goes over-center to lock the plunger.

That straight-line motion is the reason they work well as an industrial clamp for side clamping, end stops, and repeatable locating in jigs and fixtures.

Carr Lane groups push/pull toggle clamps as “plunger type” and notes they are available in multiple designs, including standard SPC design, horizontal handle, PC design, threaded body, and wagon brakes (including a glow-in-the-dark handle option for stage-set use).

If you need the top end of holding capacity, Carr Lane lists the CL-650-SPC as its strongest plunger clamp at 16,000 lbs, with a 3″ plunger travel and a tapped plunger sized for 5/8-11 spindles (M16 in metric).

A practical detail that matters in real fixtures: CL-650-SPC uses snap ring pivot pins, which lets you remove the plunger even after you mount the clamp to your plate or mounting bracket.

Essential Features of Push Pull Toggle Clamps

When you compare toggle clamps, focus on three things first: what the clamp locks, how it moves, and what you can mount to it.

From there, you can dial in material, mounting style, and accessories like spindles and locknuts so the clamp fits your station instead of forcing you to redesign the station around the clamp.

Carr Lane makes a helpful distinction that many buyers miss: clamping force is what the clamp exerts on the workpiece, while holding capacity is the maximum load the clamp can sustain without permanent deformation, and it includes a 2:1 safety factor.

If you buy based on holding capacity alone, you can still end up with a clamp that feels “weak” at the point of contact, so always verify both values if your application is sensitive (like thin sheet metal, plastic parts, or test specimens).

Secure Position Locking

The core feature of push/pull toggle clamps is the lock in the extended or retracted position.

That gives you two useful behaviors: you can push to clamp a part against a hard stop, or pull to draw a part into a locating surface.

On common straight-line models, this “two-position” behavior is what turns one clamp into two tools, a pusher and a puller.

• Push mode: use the plunger as a side clamp for CNC fixtures, router jigs, and weld fixtures.
• Pull mode: use the plunger to draw a part into a nest, datum surface, or gauge feature.
• Open lock: on many models, the retracted lock keeps the plunger out of the way during loading, so operators do not fight the clamp between cycles.

If accidental opening is a risk in your cell, look for a secondary safety lock. DESTACO’s “Toggle Lock Plus” is a well-known example of a second lock that helps maintain the over-center condition.

Consistent Straight-line Action

Straight-line plunger motion gives repeatable clamp force and repeatable part location.

Straight-line action is a big deal when you need the clamp to behave like a stop and a clamp at the same time.

Several popular models show how travel ties directly to fixture capability: PP-301A travels 0.63″, PP-304E travels 1.65″, and PP-36224 travels 2.63″.

In practice, longer travel buys you clearance and tolerance range, while shorter travel tends to feel tighter and faster for small parts.

Varied Material Selections

Material choice is less about “premium” and more about the environment the clamp lives in.

In wet, washdown, or chemical-exposed stations, stainless steel bodies reduce corrosion risk and keep the linkage moving freely over time.

One concrete example from Carr Lane’s threaded-body line: the CL-150-TPC series is offered in steel and in stainless (CL-150-TPC-S), and it keeps the same 200 lbs holding capacity with a 3/4″ plunger travel.

Another practical detail that affects your mounting bracket plan: norelem notes that its stainless versions of a push-pull toggle clamp come without a mounting bracket, while steel versions can be purchased with the bracket.

Differentiating Push Pull Toggle Clamp Models

You can usually narrow the field fast by sorting models into three buckets: light-duty, heavy-duty, and low-profile.

Then confirm the details that drive fit: travel to the extended or retracted position, spindle threads, and how the clamp mounts to your plate or mounting bracket.

The table below uses commonly purchased models to show how those tradeoffs look side-by-side.

Options for Light-duty Usage

Light-duty push/pull toggle clamps work best when you treat them as precise positioning tools, not brute-force clamps.

That is exactly where PP-301A and PP-301B shine: both are rated at 100 lbs holding capacity and 0.63″ of plunger travel.

As of February 2026, The Toggle Clamp Store lists PP-301A at $5.95 each (dropping to $4.61 at 200 units), and PP-301B at $5.94 each (dropping to $4.48 at 200 units).

• Pick PP-301A if you want a simple miniature clamp with a supplied #8-32 spindle for light stops and small fixtures.
• Pick PP-301B if you want an externally threaded plunger style that can simplify certain panel-style installations.
• Upgrade to stainless steel for wet stations, for example PP-36202SS holds 200 lbs with a 0.75″ travel and includes a 1/4-20 adjustable spindle.

Solutions for Heavy-duty Demands

For heavy-duty workholding, you are buying two things: higher holding capacity and a base that stays rigid under load.

At the top end, Carr Lane lists CL-650-SPC at 16,000 lbs holding capacity with 3″ plunger travel, which puts it in the “build the fixture around it” class.

For a more compact heavy-duty option, PP-36330 is rated at 2,500 lbs holding capacity with 2.00″ plunger travel, and the published quantity pricing runs from $26.76 (1 unit) down to $20.87 (200 units) as of February 2026.

If you need high holding capacity but also want a smaller footprint, another path is a straight-line action clamp family like DESTACO’s 670/690 series, which includes models rated up to 5,000 lbs.

Designs for Low-profile Environments

Low-profile designs matter any time the operator’s hands, a spindle, or a toolpath needs clearance above the clamp.

In those fixtures, you can often get the holding capacity you need without paying the “tall clamp penalty.”

• PP-36003: 600 lbs holding capacity with 1.25″ plunger travel, useful for compact CNC router fixtures and weld jigs where access is tight.

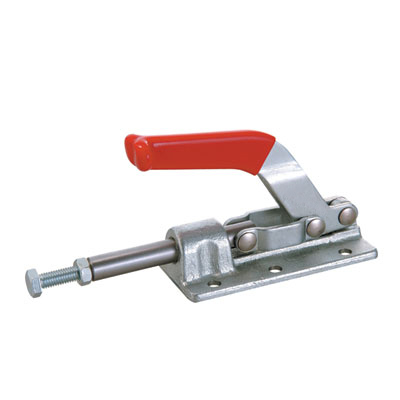

• PP-30607: 700 lbs holding capacity with 1.63″ plunger travel, a common pick when you need travel but still want a lower overall profile.
• PP-36330: 2,500 lbs holding capacity with a lower profile handle, a smart choice when your load is heavy but headroom is limited.

The practical rule is simple: if you are modeling a fixture, check the clamp’s overall height and overall length early, then verify the handle swing clears your neighboring screws, clamps, and locating pins.

Utilizing Push Pull Toggle Clamps in Various Applications

Push/pull toggle clamps are popular because they combine fast operation with predictable positioning.

Once you set the spindle, the clamp becomes a repeatable “mechanical habit” for your operators, which is exactly what you want in production.

Streamlining Manufacturing Processes

In manufacturing cells, the best win is usually not more force, it is fewer adjustments.

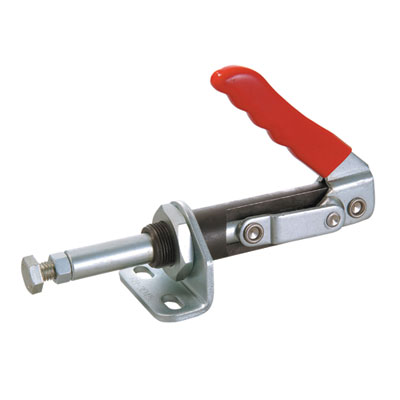

Threaded-body push/pull clamps are built for that, since you can mount them through a plate and lock them in place with a nut.

Carr Lane’s CL-350-TPC is a good example of how this helps in real fixtures: it installs in a 1″-diameter drilled hole (or a 1″-14 tapped hole), can rotate to position the handle anywhere within 360°, and it provides 2-5/8″ plunger travel with a 700 lbs holding capacity.

If you have a station that clamps a range of part thicknesses, an auto-adjust style can save setup time. Bessey’s STC-IHH25 is one example that auto-adjusts to height variation while offering a nominal clamping force range and a 700 lbs holding capacity rating.

Enhancing CNC Machinery Setups

In CNC fixtures, you want two outcomes: stable workholding and clean loading motion.

Push/pull toggle clamps help because the straight-line plunger makes it easier to predict where the part will go as you clamp it, which is critical on CNC routers and mills with tight toolpath clearance.

If you need a clamp that comes as a packaged bracketed unit, norelem sells a “push-pull toggle clamp with mounting bracket” (agid.26846) listed at $53.47 as of February 2026, and norelem notes you must log in to download CAD models.

For modular fixture builds, Vention lists a push pull toggle clamp (HW-CP-003-0001) with a 32 mm stroke and 2450 N clamping force, priced at $101.56, and it offers a mirrored version with a reversed mounting bracket.

Ensuring Precision in Tensile Testing

In tensile testing, repeatability comes from stable grip and stable alignment, not from “more force than you need.”

Compact threaded-body clamps work well because they can mount through a plate and sit close to the specimen, which helps control deflection in your fixtures.

A common pairing is PP-36202SS for lighter setups (200 lbs holding capacity, 0.75″ travel) and PP-36204SS when you need more holding capacity (300 lbs, 1.50″ travel).

If your clamp can lock in both the extended or retracted position, you can use the same hardware for both pull-in alignment and push-out clearance during loading.

Benefits of Using Push Pull Toggle Clamps

The operational value of push/pull toggle clamps is consistency: consistent part location, consistent clamp motion, and consistent cycle time.

That consistency protects your machined features, improves measurement repeatability, and reduces operator variation across shifts.

Boosting Production Efficiency

Fast lock and release is the obvious benefit, but the bigger gain is keeping the fixture “set” for longer.

If you frequently hit the limit of an older clamp’s capacity, it can be worth moving to a newer, higher-capacity family in the same form factor. DESTACO’s 6000 series notes improvements such as 601 to 6001 at 50% greater capacity, and 624 to 6024 at 3X greater capacity.

• Result: you can often keep your mounting pattern and still increase holding capacity.
• Payoff: fewer fixture redesigns and fewer “temporary” workarounds on the shop floor.

Minimizing Operational Times

Short setup time comes from choosing the right travel and the right mounting style up front.

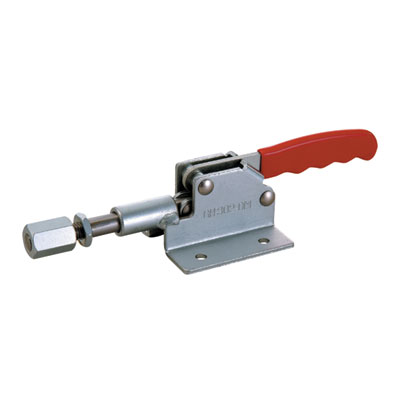

For example, PP-302F is a mid-size push/pull clamp with 1.25″ plunger travel and 300 lbs holding capacity, which is often enough for general-purpose jigs without the size and cost of heavy-duty models.

If you buy for multiple stations, published quantity pricing can reduce your per-station cost, for example PP-302F is listed with price breaks from $11.19 down to $8.37 at 200 units as of February 2026.

Elevating Accuracy and Safety

Accuracy improves when the clamp locks the same way every time, especially in repetitive machining and inspection.

Safety improves when the clamp resists accidental opening during vibration or bumping, which is why secondary safety-lock features matter in busy cells.

Carr Lane notes that some of its toggle clamps include safety lock features that automatically engage in the closed position and stay locked until the user disengages them, which helps prevent unintended opening if the handle gets bumped.

Selecting the Appropriate Push Pull Toggle Clamp

Selection gets easier when you treat the clamp as a system, not a single part number.

You are choosing the clamp body, the mounting style (flanged base, threaded body, or mounting bracket), and the spindle thread that matches your stops, pads, and contact points.

Assessing Clamping Force Needs

Start by sizing for holding capacity, then validate you can generate the clamping force your process needs at the contact point.

Carr Lane’s guidance is useful here: holding capacity is defined as the maximum force that can be applied without deforming the clamp, and it includes a 2:1 safety factor.

• Light work: 100 lbs models like PP-301A and PP-301B are a fit for small parts, light assemblies, and basic stops.
• General fixtures: 300 lbs models like PP-302F and PP-36204 cover many day-to-day jig tasks.
• High-force fixtures: PP-304E at 850 lbs and PP-36330 at 2,500 lbs cover heavier CNC and weld fixture needs.
• Extreme loads: CL-650-SPC at 16,000 lbs is for fixtures where the clamp becomes a structural element.

Then check travel: longer travel helps with thicker workpieces or extra clearance, but it can also increase the space you need for handle motion.

Matching Clamp Specifications with Requirements

Once you narrow the force and travel, the next filter is fit and compatibility.

In practice, that means confirming spindle threads, mounting style, and whether you need the clamp to rotate in the fixture.

If your catalog portal is picky, handle the basics first: log in again, check your inbox for account verification emails, and clear cookies if you get stuck in a sign-in loop.

Conclusion

Push/pull toggle clamps solve a simple problem: they keep your work from moving, and they do it the same way every cycle.

This guide connected real model specs, like the PP-36202SS stainless steel option and the CL-650-SPC heavy-duty industrial clamp, to how you actually fixture parts for CNC routers, assembly, and tensile testing.

Pick your clamp by matching holding capacity, plunger travel, and the right mounting bracket or through-panel mount, then confirm spindle threads and procurement details before you place the order.

FAQs

1. What is a push pull toggle clamp?

A push pull toggle clamp is a toggle clamp that moves a bar in and out to hold work pieces. It gives high clamping force with a small handle motion.

2. Where do you use a push pull toggle clamp?

Use it on fixtures, jigs, and assembly lines for quick, repeatable hold-down and part positioning.

3. How do I install and adjust a push pull toggle clamp?

Mount the clamp to a flat, stable base with the right fasteners, and align the bar to the work piece. Test the stroke, set the travel stops, and tighten the hardware. Check the rated load capacity and adjust the handle so the clamp locks fully.

4. What maintenance and safety checks should I do?

Do daily checks for wear, loose bolts, and rough action, do not assume the clamp is maintenance-free. Lubricate pivots, replace worn parts, and verify clamping force meets the rated load capacity before each use.
