Your Ultimate Guide about Horizontal Toggle Clamp

Toggle clamps are among the many essential devices you should stock.

It’s useful for keeping a workpiece stationary by firmly holding it down.

This way, the frequent movements of your workpiece won’t bother you.

You can work well with your workpiece rooted in one place.

The toggle clamp functions using a distinct pivot and level system.

This system holds the workpiece down.

Additionally, it allows you to squeeze, push or pull whenever.

In this ebook, you’ll be able to learn about horizontal toggle clamps.

This is one of the many types of toggle clamps.

You can divide toggles clamps into three different design types.

These designs types are:

  • Push-pull clamps
  • Vertical toggle clamps
  • Horizontal toggle clamps

In this ebook, our focus is the horizontal clamps.

Horizontal toggle clamps mean:

It is a toggle clamp with an operating level in a horizontal start position.

Horizontal toggle clamps follow the same mechanism as any other toggle clamp.

But still, there are other types of this particular toggle clamp.

This ebook offers you all the valuable information about toggle clamps.

Chapter 1: Everything to Know About Horizontal Toggle Clamps

Horizontal Toggle Clamps

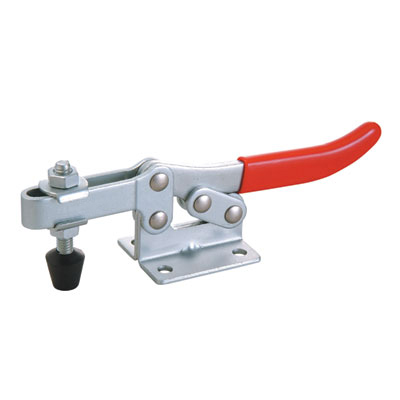

What is a Horizontal Toggle Clamp?

Horizontal toggle clamp is a design type of toggle clamp with one distinct difference.

That is, its operating level is at a horizontal start position.

Besides this one key difference, all types are basically the same.

Different materials may be used for this type of toggle clamp.

For instance, the grips can use oil resistant plastic.

It’s a great material offering good haptics.

To adjust its clamping height, you can use the thrust screw.

The screw uses a nearly uniform clamping force.

With that, the tool is able to offer practical height adjustment.

You can also adjust the device’s clamping force.

Usually, horizontal toggle clamps have a setscrew located in the joint underneath the lever.

Using that, you can adjust the clamping force to suit any application.

In terms of uses, you can use a horizontal toggle clamp in a lot of ways.

Horizontal Toggle Clamp vs. Vertical Toggle Clamp

Horizontal toggle clamps are also known as horizontal hand toggle clamp.

Other times, they are called horizontal hold down toggle clamps.

Both names indicate how you use the tool.

As mentioned before, this toggle clamp is nearly the same as a vertical toggle clamp.

There are only subtle differences between them.

For instance, the way you hold the tools down is different.

Similarly, the clamp handle is different as well.

Horizontal toggle clamps also move in different directions.

Toggles clamps have only one clamping plate, whether horizontal or vertical.

This means you can use it in conjunction with the workbench surface.

And, Yes!

With that, you can secure your workpiece in place without a problem.

You can use horizontal toggle clamps in many ways.

Some of these uses will be discussed in this ebook.

For the best toggle clamps, is Rocheclamp is a good place to check.

The site has an extensive list of clamp products for a wide array of applications.

If you’re unable to find the right toggle clamp, they can custom-build one.

So if you’re looking for tooling for your business, don’t look further.

Rocheclamp is a great place to find the tool you’re looking for.

Horizontal Toggle Clamp Uses

The applications of horizontal toggle clamps are more specialized.

This is why they don’t usually get a lot of attention.

Most of the time, you won’t buy them unless you have a specific need.

This tool is the perfect choice for a clamping problem where toggle is necessary.

You have two types of toggle clamp options: the horizontal and vertical.

Having at least a couple of these two would help you a lot.

Horizontal toggle clamps can help prevent hand strain.

It also helps you work more safely.

On using horizontal toggle clamps, here are its main functions:

  • Create an over-center lock.

This helps prevent the clamp from opening.

Thus, you can prevent the release of your work.

  • Multiply the handle’s hand force.

It helps to add a high clamping force for holding your work.

  • Rapid opening and closing of the clamp.

This gives a wide clearance for loading and unloading your workplace.

Based on these functions, you have numerous applications to use a horizontal toggle clamp.

Some of these applications are:

1. Locking Miter Joints

It is simply difficult to lock miter joints with bar-style clamps.

You need even pressure on both sides of the joint. If not, it will slip out of position.

Horizontal toggle clamps can help by applying lateral force.

Against a squared backup block, the toggle clamps form a quick, easy mitering position.

2. Tension-Free Tapering

There’s one major flaw with usual two-leg tenoning jigs.

It doesn’t have a convenient way of holding a workpiece.

Horizontal toggle clamps can add convenience to this situation.

Moreover, it can keep your fingers safe.

This helps you clamp your workpiece in place for precise tapering.

3. Dealing with Narrow Rails

Without support, feeding a rail past a coping bit can be dangerous.

You can use a backup board to do this.

However, nothing will hold the parts together.

That’s where a horizontal toggle clamp will be useful.

Use it with a simple coping jig.

With a pair of toggle clamps, you can keep the rail immobilized.

These are only a few of the many horizontal toggle clamp uses.

But they’re enough to show the practicality of this tool.

Horizontal Push Toggle Clamp

The horizontal push toggle clamp is a practical choice for milling and drilling work.

In this type of toggle clamp, the lever’s movement turns to axial movement.

It means instead of from above, your workpiece is fixed from the side.

Its clamping ranges from 25 to 35mm.

Features of horizontal push toggle clamp include:

  • Push-pull handle movement
  • Automatic adjustment of clamping height
  • Adjustable clamping force
  • High quality
  • Oil resistant

Horizontal Latch Toggle Clamp

The horizontal latch toggle clamp is another type of toggle clamps.

It is suitable for quick close and lock of hatches and covers.

This type of latch clamp features a movable handle.

To lock, you need to move the clamping pull bar around the opposing latch.

This toggle clamp is ideal for sealing mold closures.

You can also use it to seal chamber doors and access doors.

Using this latch clamp offers you a powerful clamping force.

With that, you can benefit from a convenient operation and positive holding.

For demanding environments, there are also stainless steel horizontal latch toggle clamps.

These are great for use in chemical and food processing, among others.

Depending on the application, you have varying toggle clamp options to choose from.

Pick the one that suits the requirement of your workpiece well.

Chapter 2: How to Use Horizontal Toggle Clamp

Attaching the Clamp

Before using the toggle, you need to secure it in place first.

You have to attach it to a workbench.

Attaching the clamp requires a pencil, drill, some bolts, and nuts.

1. Marking Holes

Use the pencil and make where you want to attach the clamp.

As a guide, use the toggle clamp’s base.

Mark four holes just like the clamp’s base.

It should be two on each side of the toggle clamp.

2. Drilling Holes

After marking the holes, create the holes in the workbench using a drill.

In drilling the holes, make sure the correct size for the bolts.

3. Attaching the Clamp

After drilling the holes, next is to attach.

Place it in position while making sure all the holes are aligned.

When in position, you can now insert the four bolts in each hole.

Place nuts on the ends of the bolt.

Tighten it to secure the clamp.

This is how you attach a horizontal toggle clamp properly.

Using the Clamp

After fastening the clamp into the workbench, you can now use it.

You can use it for a wide array of applications.

Horizontal toggle clamps are perfect holding objects securely.

4. Positioning Your Work Piece

First, ensure that you pulled the clamp up.

This gives space between the clamping plate and work surface.

It is within this space where you can put your workpiece.

Your workpiece should be a direct opposite of the clamping plate.

5. Pushing the Lever

To engage the plate with your workpiece, push the lever to the right.

This will clamp your workpiece in place securing it.

When you push the lever to the right, the clamp will lock.

Your workpiece won’t be released unless you pull the lever to back into place.

This is how easy to use a horizontal toggle clamp.

It is basically the same as other toggle clamps.

However, this clamp employs axial movement to the right.

With using a toggle clamp, your workpiece is now secured.

This means you can complete your desired application without problems.

Chapter 3: The Horizontal Toggle Clamp Mechanism

Do you know the Horizontal Toggle Clamp Mechanism?

You can understand the horizontal toggle clamp better when you know its mechanism.

The toggle mechanism works through a linkage system.

It means levers and pivots connected to each other make the toggle work.

The fixed-length lever provides the action and clamping force.

This lever is connected through pivot pins.

The toggle mechanism also has an over-center lock point.

This is a fixed stop as well as a linkage.

When the over-center is in position, the clamp is unable to more.

You won’t be able to unlock it until you move the linkage.

Whether horizontal toggle clamp or not, the same mechanism works.

The only difference is the toggle action is in a different orientation.

The Force Factors in a Toggle Mechanism

Three pivot points of the mechanism work to supply the clamping force.

When these pivot points are in straight line, the toggle action clamp exerts force.

This is theoretically true.

However, the mechanism might not apply well in industrial applications.

This is because it doesn’t provide an allowance to certain factors.

Factors like intermittent load conditions and vibration can affect the clamping force.

In these conditions, an improperly designed clamp will soon unlock.

It took years of experimentation to develop the proper amount of over-center travel.

With this, you can apply maximum clamping force and ensure positive locking.

How well your horizontal toggle clamp works depend on your manufacturer.

The right manufacturer surely employs years of experience to offer you the best product.

Chapter 4: Advantages of Stainless Steel Horizontal Toggle Clamp:

Stainless Steel Horizontal Toggle Clamp

Stainless steel horizontal toggle clamps have the advantage of being low profile tool.

When in a closed position, the horizontal handle is inconspicuous.

This makes this toggle clamp most suitable for applications with height restriction.

In addition, stainless steel clamps have added benefits.

Toggle clamps made of stainless steel is lightweight.

They are also obviously resistant to rust.

Most of them have flexible plastic handles.

Clamps developed in stainless steel offer you the advantages of:

  • Ease of fabrication
  • Temperature resistance
  • Corrosion resistance
  • Strength
  • Aesthetic appeal

A stainless steel horizontal toggle clamp comes with a layer of resistance to corrosion.

This is a great benefit in certain environments.

This tool is ideal to use in workplaces with chloride, acids or alkaline.

Stainless steel toggle clamps are also long-lasting.

The highest-quality built clamps can last for a long time.

There are plenty of advantages that stainless steel toggle clamps offer.

But what exactly is stainless steel?

It is steel but with 10% or more added chromium.

The chromium coats the steel with an invisible chromium oxide film.

The steel is also added with elements such as nickel, nitrogen, and molybdenum.

These elements offer the steel with added corrosion resistance.

Advantages of a Horizontal Toggle Clamp

Even if yours is an ordinary horizontal toggle clamp, it still has many benefits.

Some of these advantages are:

  • TIME-SAVING

Clamping, and release can be achieved within seconds.

It saves you a lot of time per cycle.

  • DURABILITY

All vital components of the clamp are high-quality.

Each is made with adequate corrosion and wear resistance.

This ensures the tool’s longer working life.

  • EASY TO INCORPORATE

No need for precise slotting, machining, etc. Horizontal toggle clamps are easy to use.

  • LOW MAINTENANCE

Horizontal toggle clamps are nearly maintenance-free.

They may need some lubrication occasionally.

  • COST-SAVING

These tools help make your job simpler.

It reduces cycle time with low maintenance.

Increased productivity means reduced cost.

When it comes to toggle clamps, RocheClamp is a great place to take a look at.

You can also find the best stainless steel horizontal toggle clamps in this site.

They offer the best clamp products made from the highest quality materials.

Here is where you can find the tools suitable to any of your application.

Whether it’s for an ordinary home project or for business projects, Roche covers your needs.

As a premier toggle clamps manufacturer, they have any type to offer you.

You can choose from their catalog for the suitable toggle clamp.

If you don’t any that suits you, they can modify one to your specifications.

If not, they can also custom-build a horizontal toggle clamp for you.

Roche Clamp is the one-stop shop for any clamp tools you might need.

Conclusion

Toggle clamps are among the most useful tools a homeowner can have.

With these, you’ll be able to work safely and timely.

It allows you to save time through increased productivity.

Therefore, you also save costs on your projects.

It helps you work on projects with precision.

Depending on the type of material, there are added benefits as well.

Horizontal toggle clamps are one type of the tool you might want to have.

Horizontal toggle clamps are great for certain applications with high restriction.

Including this in your tools will greatly help in a lot of ways.

Through this ebook, you’ll be able to understand how useful this tool is.

Use this ebook to choose the horizontal toggle clamp to ensure your work’s efficiency.

More Information About Horizontal Toggle Clamp:
